EDDV-ILS 27R Localizer

The Localizer station for runway 27R at Hannover Airport in Germany

The Instrument Landing System (ILS) is a ground-based instrument approach system that provides precision guidance to an aircraft approaching and landing on a runway, using a combination of radio signals and, in many cases, high-intensity lighting arrays to enable a safe landing during instrument meteorological conditions (IMC), such as low ceilings or reduced visibility due to fog, rain, or blowing snow.

Instrument Approach Procedure charts (or "approach plates") are published for each ILS approach, providing pilots with the needed information to fly an ILS approach during instrument flight rules (IFR) operations, including the radio frequencies used by the ILS components or navaids and the minimum visibility requirements prescribed for the specific approach.

Radio-navigation aids must keep a certain degree of accuracy (given by international standards, FAA, ICAO...); to assure this is the case, Flight inspection organizations check periodically critical parameters with properly equipped aircraft to calibrate and certify ILS precision.

Principle of operation[]

An ILS consists of two independent sub-systems, one providing lateral guidance (Localizer), the other vertical guidance (Glideslope or Glide Path) to aircraft approaching a runway. Aircraft guidance is provided by the ILS receivers in the aircraft by performing a modulation depth comparison.

ILS illustration

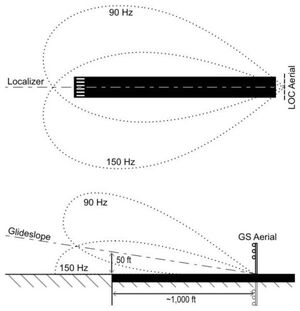

The emission patterns of the localizer and glideslope signals. Note that the glideslope beams are partly formed by the reflection of the glideslope aerial in the ground plane.

A localizer (LOC, or LLZ in Europe) antenna array is normally located beyond the departure end of the runway and generally consists of several pairs of directional antennas. Two signals are transmitted on one out of 40 ILS channels between the carrier frequency range 108.10 MHz and 111.95 MHz (but only the odd kHz, so 108.10 108.15 108.30 and so on are LOC frequencies but 108.20 108.25 108.40 and so on are not). One is modulated at 90 Hz, the other at 150 Hz and these are transmitted from separate but co-located antennas. Each antenna transmits a narrow beam, one slightly to the left of the runway centerline, the other to the right.

The localizer receiver on the aircraft measures the Difference in the Depth of Modulation (DDM) of the 90 Hz and 150 Hz signals. For the localizer, the depth of modulation for each of the modulating frequencies is 20 percent. The difference between the two signals varies depending on the position of the approaching aircraft from the centerline.

If there is a predominance of either 90 Hz or 150 Hz modulation, the aircraft is off the centerline. In the cockpit, the needle on the Horizontal Situation Indicator, or HSI (The Instrument part of the ILS), or CDI (Course deviation indicator), will show that the aircraft needs to fly left or right to correct the error to fly down the center of the runway. If the DDM is zero the aircraft is on the centerline of the localizer coinciding with the physical runway centerline.

A glideslope or Glidepath (GP) antenna array is sited to one side of the runway touchdown zone. The GP signal is transmitted on a carrier frequency between 329.15 and 335 MHz using a technique similar to that of the localizer. The centerline of the glideslope signal is arranged to define a glideslope of approximately 3° above horizontal (ground level). The beam is 1.4° deep; 0.7° below the glideslope centerline and 0.7° above the glideslope centerline.

Localizer and glideslope carrier frequencies are paired so that only one selection is required to tune both receivers.

These signals are displayed on an indicator in the instrument panel. This instrument is generally called the omni-bearing indicator or nav indicator. The pilot controls the aircraft so that the indications on the instrument (i.e. the course deviation indicator) remain centered on the display. This ensures the aircraft is following the ILS centreline (i.e. it provides lateral guidance). Vertical guidance, shown on the instrument by the glideslope indicator, aids the pilot in reaching the runway at the proper touchdown point. Some aircraft possess the ability to route signals into the autopilot, allowing the approach to be flown automatically by the autopilot.

Localizer[]

Whiteman localizer

Localizer array and approach lighting at Whiteman Air Force Base, Johnson County, Missouri.

In addition to the previously mentioned navigational signals, the localizer provides for ILS facility identification by periodically transmitting a 1020 Hz morse code identification signal. For example, the ILS for runway 04R at John F. Kennedy International Airport transmits IJFK to identify itself, while runway 04L is known as IHIQ. This lets users know the facility is operating normally and that they are tuned to the correct ILS. The glideslope transmits no identification signal, so ILS equipment relies on the localizer for identification.

Modern localizer antennas are highly directional. However, usage of older, less directional antennas allows a runway to have a non-precision approach called a localizer back course. This lets aircraft land using the signal transmitted from the back of the localizer array. This signal is reverse sensing so a pilot may have to fly opposite the needle indication (depending on the equipment installed in the aircraft). Highly directional antennas do not provide a sufficient signal to support a backcourse. In the United States, backcourse approaches are commonly associated with Category I systems at smaller airports that do not have an ILS on both ends of the primary runway.

Marker beacons[]

File:NDB ZBAA 36L MM.JPG

The NDB station co-located with Middle Marker of Beijing Capital International Airport ILS RWY36L

Main article: Marker beacon

On most installations marker beacons operating at a carrier frequency of 75 MHz are provided. When the transmission from a marker beacon is received it activates an indicator on the pilot's instrument panel and the tone of the beacon is audible to the pilot. The distance from the runway at which this indication should be received is promulgated in the documentation for that approach, together with the height at which the aircraft should be if correctly established on the ILS. This provides a check on the correct function of the glideslope. In modern ILS installations a DME is installed, co-located with the ILS, to augment or replace marker beacons. A DME continuously displays the aircraft's distance to the runway.

Outer marker[]

Outer Marker Indicator

Blue outer marker

The outer marker should be located 7.2 km (3.9 NM) from the threshold except that, where this distance is not practicable, the outer marker may be located between 6.5 and 11.1 km (3.5 and 6 NM) from the threshold. The modulation is repeated Morse-style dashes of a 400 Hz tone. The cockpit indicator is a blue lamp that flashes in unison with the received audio code. The purpose of this beacon is to provide height, distance and equipment functioning checks to aircraft on intermediate and final approach. In the United States, an NDB is often combined with the outer marker beacon in the ILS approach (called a Locator Outer Marker, or LOM); in Canada, low-powered NDBs have replaced marker beacons entirely. Template:Clear

Middle marker[]

Middle Marker Indicator

Amber middle marker

The middle marker should be located so as to indicate, in low visibility conditions, the missed approach point, and the point that visual contact with the runway is imminent, ideally at a distance of approximately Template:Convert from the threshold. It is modulated with a 1300 Hz tone as alternating dots and dashes at the rate of two per second. The cockpit indicator is an amber lamp that flashes in unison with the received audio code. Template:Clear

Inner marker[]

Inner Marker Indicator

White Inner Marker

The inner marker, when installed, shall be located so as to indicate in low visibility conditions the imminence of arrival at the runway threshold. This is typically the position of an aircraft on the ILS as it reaches Category II minima. Ideally at a distance of approximately Template:Convert from the threshold. The modulation is Morse-style dots at 3000 Hz. The cockpit indicator is a white lamp that flashes in unison with the received audio code. Template:Clear

DME[]

Main article: Distance Measuring Equipment

Distance measuring equipment (DME) provides pilots with a slant range measurement of distance to the runway in nautical miles. DMEs are augmenting or replacing markers in many installations. The DME provides more accurate and continuous monitoring of correct progress on the ILS glideslope to the pilot, and does not require an installation outside the airport boundary. When used in conjunction with an ILS, the DME is often sited midway between the reciprocal runway thresholds with the internal delay modified so that one unit can provide distance information to either runway threshold. On approaches where a DME is specified in lieu of marker beacons, the aircraft must have at least one operating DME unit to begin the approach, and a "DME Required" restriction will be noted on the Instrument Approach Procedure.

Monitoring[]

It is essential that any failure of the ILS to provide safe guidance be detected immediately by the pilot. To achieve this, monitors continually assess the vital characteristics of the transmissions. If any significant deviation beyond strict limits is detected, either the ILS is automatically switched off or the navigation and identification components are removed from the carrier.[1] Either of these actions will activate an indication ('failure flag') on the instruments of an aircraft using the ILS.

Approach lighting[]

Some installations include medium or high intensity approach light systems. Most often, these are at larger airports. The approach lighting system (abbreviated ALS) assists the pilot in transitioning from instrument to visual flight, and to align the aircraft visually with the runway centerline. At many non-towered airports, the intensity of the lighting system can be adjusted by the pilot, for example the pilot can click their microphone 7 times to turn on the lights, then 5 times to turn them to medium intensity.

Use of the Instrument Landing System[]

At controlled airports, air traffic control will direct aircraft to the localizer via assigned headings, making sure aircraft do not get too close to each other (maintain separation), but also avoiding delay as much as possible. Several aircraft can be on the ILS at the same time, several miles apart. An aircraft that has come within two and a half degrees of the localizer course (half scale deflection shown by the course deviation indicator) is said to be established on the approach. Typically, an aircraft will be established by at least two miles prior to the final approach fix (glideslope intercept at the specified altitude).

Aircraft deviation from the optimal path is indicated to the flight crew by means of display with "needles" (a carry over from when an analog meter movement would indicate deviation from the course line via voltages sent from the ILS receiver).

The output from the ILS receiver goes both to the display system (Head Down Display and Head-Up Display if installed) and can also go to the Flight Control Computer. An aircraft landing procedure can be either "coupled", where the Flight Control Computer directly flies the aircraft and the flight crew monitor the operation; or "uncoupled" (manual) where the flight crew fly the aircraft uses the HUD and manually control the aircraft to minimize the deviation from flight path to the runway centreline.

Rate-of-descent formula[]

A useful formula pilots use to calculate the descent rate on the glideslope.

Rate of Descent = Glideslope Angle × ( Groundspeed / 60 ) × 100

where:

  • Rate of Descent is in feet per minute
  • Glideslope angle is in degrees from the horizontal (Usually 3 degrees)
  • Groundspeed is in knots

If the glideslope is the standard 3 degrees then the formula can be further simplified to:

Rate of Descent = 5 × Groundspeed

Decision altitude/height[]

Once established on an approach, the Autoland system or pilot will follow the ILS and descend along the glideslope, until the Decision Altitude is reached (for a typical Category I ILS, this altitude is 200 feet above the runway). At this point, the pilot must have the runway or its approach lights in sight to continue the approach.

If neither can be seen, the approach must be aborted and a missed approach procedure will be performed. This is where the aircraft will climb back to a predetermined altitude and position. From there the pilot will either try the same approach again, try a different approach or divert to another airport.

Aborting the approach (as well as the ATC instruction to do so) is called executing a missed approach.

ILS categories[]

There are three categories of ILS which support similarly named categories of operation. Information below is based on ICAO - certain states may have filed differences. Check with your state's documentation.

  • Category I - A precision instrument approach and landing with a decision height not lower than Template:Ft to m above touchdown zone elevation and with either a visibility not less than Template:M to ft or a runway visual range not less than Template:M to ft.
  • Category II - Category II operation: A precision instrument approach and landing with a decision height lower than Template:Ft to m above touchdown zone elevation but not lower than Template:Ft to m, and a runway visual range not less than Template:M to ft.
  • Category III is further subdivided
    • Category III A - A precision instrument approach and landing with:
      • a) a decision height lower than Template:Ft to m above touchdown zone elevation, or no decision height; and
      • b) a runway visual range not less than Template:M to ft.
    • Category III B - A precision instrument approach and landing with:
      • a) a decision height lower than Template:Ft to m above touchdown zone elevation, or no decision height; and
      • b) a runway visual range less than Template:M to ft but not less than Template:M to ft.
    • Category III C - A precision instrument approach and landing with no decision height and no runway visual range limitations. A Category III C system is capable of using an aircraft's autopilot to land the aircraft and can also provide guidance along the runway surface.

In each case a suitably equipped aircraft and appropriately qualified crew are required. For example, Cat IIIc requires a fail-operational system, along with a Landing Pilot (LP) who holds a Cat IIIc endorsement in their logbook, Cat I does not. A Head-Up Display which allows the pilot to perform aircraft maneuvers rather than an automatic system is considered as fail-operational. Cat I relies only on altimeter indications for decision height, whereas Cat II and Cat III approaches use radar altimeter to determine decision height.[2]

An ILS is required to shut down upon internal detection of a fault condition as mentioned in the monitoring section. With the increasing categories, ILS equipment is required to shut down faster since higher categories require shorter response times. For example, a Cat I localizer must shutdown within 10 seconds of detecting a fault, but a Cat III localizer must shut down in less than 2 seconds.[1]

Limitations and alternatives[]

EDDV-ILS 09R Glideslope

The Glideslope station for runway 09R at Hanover Airport in Germany

Due to the complexity of ILS localizer and glideslope systems, there are some limitations. Localizer systems are sensitive to obstructions in the signal broadcast area like large buildings or hangars. Glideslope systems are also limited by the terrain in front of the glideslope antennas. If terrain is sloping or uneven, reflections can create an uneven glidepath causing unwanted needle deflections. Additionally, since the ILS signals are pointed in one direction by the positioning of the arrays, ILS only supports straight in approaches (though a modified ILS called an Instrument Guidance System (IGS) is also occasionally used, the most famous example being that which was in use at one of the runways of Kai Tak Airport, Hong Kong to accommodate a non-straight approach[3][4]; IGSes are also called Localizer Type Directional Aids in the US). Installation of ILS can also be costly due to the complexity of the antenna system and siting criteria. To avoid hazardous reflections that would affect the radiated signal ILS critical areas and ILS sensitive areas are established. Positioning of these critical areas can prevent aircraft from using certain taxiways.[5] This can cause additional delays in take offs due to increased hold times and increased spacing between aircraft.

In the 1980s there was a major US & European effort to establish the Microwave Landing System, which is not similarly limited and which allow curved approaches. However, a combination of airline reluctance to invest in MLS, and the rise of GPS has resulted in its failure to be adopted in US Civil Aviation. The Transponder Landing System (TLS) is another alternative to an ILS that can be used where a conventional ILS will not work or is not cost-effective.

Localizer Performance with Vertical guidance (LPV) is the latest alternative to the ILS. Based on WAAS, LPV has similar minima to ILS for appropriately equipped aircraft. As of November, 2008 the FAA has published more LPV approaches than Category I ILS procedures.

An alterative to ILS is the Ground-Based Augmentation System (GBAS), a safety-critical system that augments the GPS Standard Positioning Service (SPS) and provides enhanced levels of service. It supports all phases of approach, landing, departure, and surface operations within the VHF coverage volume. (LAAS is the GBAS equivalent in the United States). GBAS is expected to play a key role in modernization and in all-weather operations capability at CATI/II and III airports, terminal area navigation, missed approach guidance and surface operations. GBAS provides the capability to service the entire airport with a single frequency (VHF transmission) whereas ILS requires a separate frequency for each runway end. GBAS CAT-I is seen as a necessary step towards the more stringent operations of CAT-II/III precision approach and landing. Until recently, the technical risk of implementing GBAS prevented wide spread acceptance of the technology. The FAA, along with industry, have fielded Provably Safe Prototype GBAS stations which mitigate the impact of satellite signal deformation, ionosphere differential error, ephemeris error and multipath.

History[]

Tests of the ILS system began in 1929, and the Civil Aeronautics Administration (CAA) authorized installation of the system in 1941 at six locations. The first landing of a scheduled U.S. passenger airliner using ILS was on January 26, 1938, as a Pennsylvania Central Airlines Boeing 247-D flew from Washington, D.C., to Pittsburgh and landed in a snowstorm using only the Instrument Landing System.[6] The first fully automatic landing using ILS occurred at Bedford Airport UK in March 1964.[7]

Future[]

The Microwave Landing System (MLS) introduced in the 1970s[8] was intended to replace ILS but fell out of favor in the United States because of satellite based systems. However, it is showing a resurgence in the United Kingdom for civil aviation.[9] ILS and MLS are the only standardized systems in Civil Aviation that meet requirements for Category III automated landings.[10] The first Category III MLS for civil aviation was commissioned at Heathrow airport in March 2009.[11]

The advent of the Global Positioning System (GPS) provides an alternative source of approach for aircraft. In the US, the Wide Area Augmentation System (WAAS) has been available to provide precision guidance to Category I standards since 2007, and the equivalent in Europe, the European Geostationary Navigation Overlay Service (EGNOS), is currently undergoing final trials and will be certified for safety of life applications in 2010. Other methods of augmentation are in development to provide for Category III minimums or better, such as the Local Area Augmentation System (LAAS).

The FAA Ground-Based Augmentation System (GBAS) office is currently working with industry in anticipation of the certification of the first GBAS ground station in Memphis, TN; Sydney, Australia; Bremen, Germany; Spain and Newark, NJ. All four countries have installed GBAS systems and are involved in technical and operational evaluation activities. The Honeywell and FAA team are working on the System Design Approval of the world’s first Non-Federal U.S. approval for LAAS Category I operations; expected in first quarter 2009 and compliant with International Civil Aviation Organization (ICAO) Standards and Recommended Practices (SARPs) Category I LAAS.

Frequency list[]

Frequencies are in MHz.[12][13] Template:Multicol

Channel LOC G/S
18X 108.10 334.70
18Y 108.15 334.55
20X 108.30 334.10
20Y 108.35 333.95
22X 108.50 329.90
22Y 108.55 329.75
24X 108.70 330.50
24Y 108.75 330.35
26X 108.90 329.30
26Y 108.95 329.15

Template:Multicol-break

Channel LOC G/S
28X 109.10 331.40
28Y 109.15 331.25
30X 109.30 332.00
30Y 109.35 331.85
32X 109.50 332.60
32Y 109.55 332.45
34X 109.70 333.20
34Y 109.75 333.05
36X 109.90 333.80
36Y 109.95 333.65

Template:Multicol-break

Channel LOC G/S
38X 110.10 334.40
38Y 110.15 334.25
40X 110.30 335.00
40Y 110.35 334.85
42X 110.50 329.60
42Y 110.55 329.45
44X 110.70 330.20
44Y 110.75 330.05
46X 110.90 330.80
46Y 110.95 330.65

Template:Multicol-break

Channel LOC G/S
48X 111.10 331.70
48Y 111.15 331.55
50X 111.30 332.30
50Y 111.35 332.15
52X 111.50 332.90
52Y 111.55 332.75
54X 111.70 333.50
54Y 111.75 333.35
56X 111.90 331.10
56Y 111.95 330.95

Template:Multicol-end
